Modified Shipping Containers

Custom Container Modifications



If you can think it, we can build it. Modular Engineering can transform a standard ISO container into a water treatment unit, electronic/telecom equipment housing, shower/sanitation room, and even commercial storefronts. The possibilities are nearly endless and our team can help you from design to implementation to get the product you desire.  Whether you want a unit ready for equipment integration or a turnkey solution, we want to be your partner that delivers.

Specifics

  • Standard Sizes (High-Cubes available for additional 1' of ceiling height):
    • 20'L x 8'W x 8'6"H
    • 40'L x 8'W x 8’ 6”H
  • Other Size Options:
    • Length - 10', 45', 48', 53'
  • Factory assembled, pre-wired, pre-glazed, pre-finished
  • Walls & Roof: Welded tubular steel and angle to framed openings and reinforce walls & roof
  • Floor: retain existing 1-1/8" marine grade plywood with optional steel/aluminum diamond plate, non-skid liner, rubber mat, industrial vinyl tile
  • Interior: 18 Ga. galvanized steel panel system built to retain insulation and provide a rigid surface to mount fixtures and equipment (FRP, custom finishes optional)
  • Windows: 1" tempered glass window units with options to insulate or tint
  • Personnel Doors: Industrial steel doors, key lock, panic hardware, closer, threshold, weather strip and hinges with optional glass
  • Equipment Doors: Manual or motorized roll-up door, relocate existing or add additional cargo doors
  • Insulation: Fiberglass batt, rigid board, foam-in-place to the appropriate R-value for application
  • Electrical: Load center and required breakers, with interior/exterior lighting and outlets
  • Paint: Rust inhibiting primer and industrial finish to specification and installation location
  • HVAC: Through-wall or roof-top units
  • Anchoring System: Fabricated base anchors with through-hole for securing to foundation
  • Other finish and trim options available upon request

  Let's get started

Modular Container Modification
Modular container open
Modular Engineering Inside Container

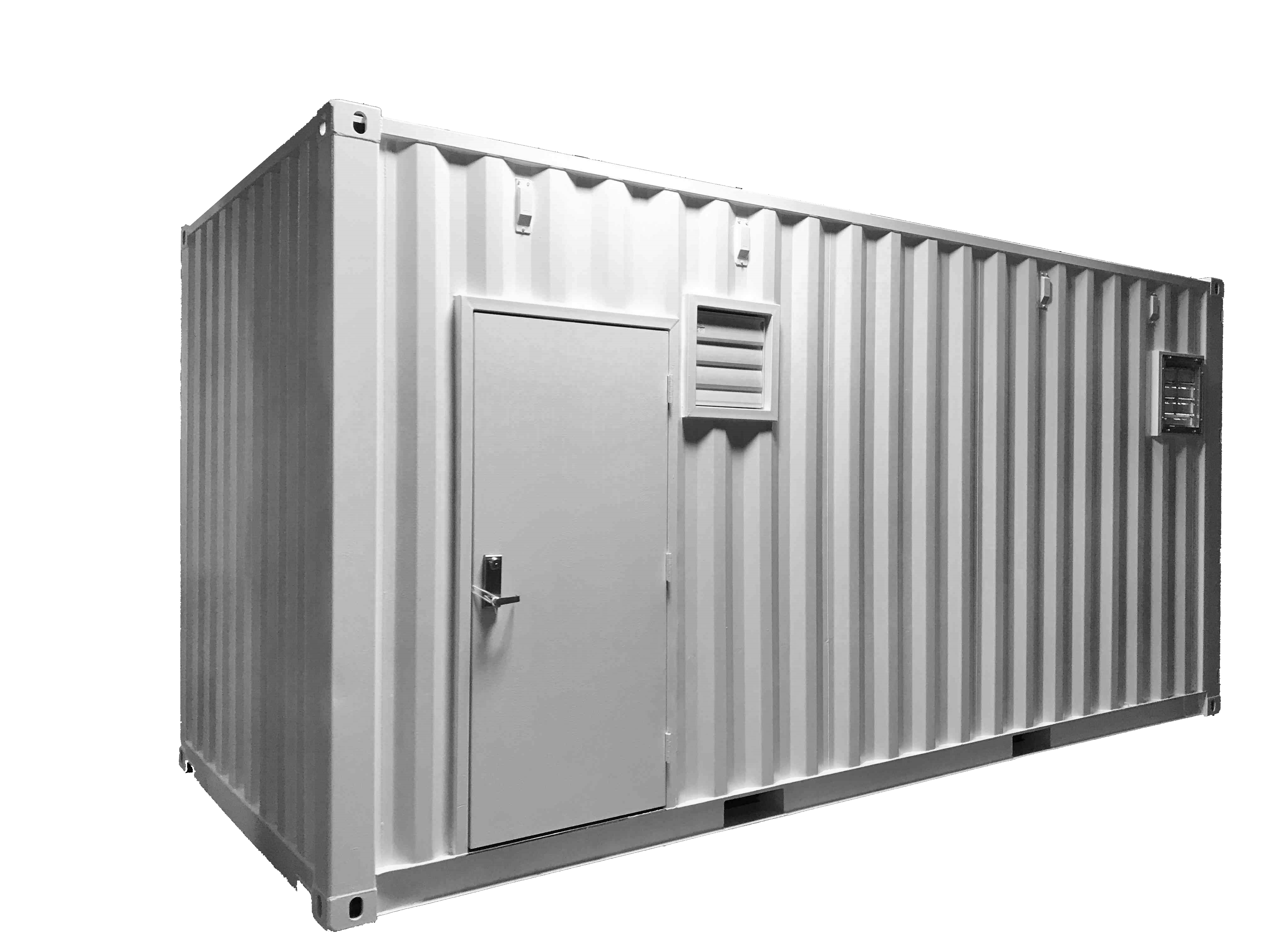

Modular Container White
Modular Engineering Grey Logo
